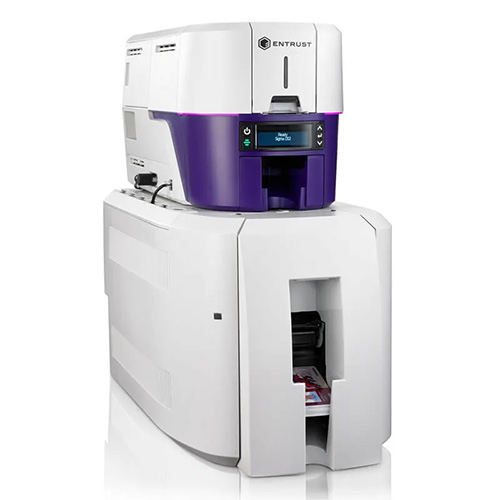

Sigma DS2 with Card Lamination Module

Print Technology

• Dye-sublimation / resin thermal transfer
• Rewritable technology

Print Capabilities

• Single or dual-sided
• Single or dual-sided, rewritable technology

Print Resolution

• 300 dots per inch (dpi) (300 X 600, 300 X 1200)

Print and Lamination Speed

• Front side YMCK and front side lamination: up to 200 cards per hour
• Front side YMCK-K ribbon, back side K with front side lamination: up to 175 cards per hour
• Monochrome printing: up to 880 cards per hour, single-sided

Card Capacity

• Input hopper – up to 125 cards
• Output hopper – up to 25 cards (up to 100 optional)
• Reject hopper – up to 10 cards

Operating Environment

• Temperature: 60°F to 95°F (15°C to 35°C)
• Humidity: 20-80 % RH – non condensing test

Physical Dimensions

• L 23.8 in x W 10.6 in x H 20.4 in / 60.4 cm x 27 cm x 51.9 cm

Weight

• 30 lbs (13.62 kg); with options will vary

Connectivity

• USB & Ethernet

Warranties

• 36 Months Printer

Web Browser Support for Instant ID as a Service

• Chrome – Preferred
• Edge/Internet Explorer
• Safari

Operating System Support for Printer Driver

• Windows 11
• Windows 10 (32- and 64-bit)
• Windows Server 2019
• Windows Server 2022
