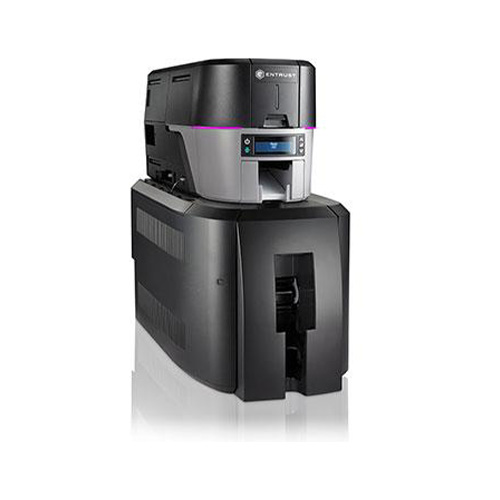

Sigma DS3 with Card Lamination Module

Print Technology

• Dye-sublimation / resin thermal transfer
• Rewritable technology

Print Capabilities

• Single or dual-sided

Print Resolution

• 300 dots per inch (dpi) (300 X 600, 300 X 1200)

Monochrome Printing

• Up to 1100 cards per hour single-sided

Print, Lamination, and Tactile Speed

• Full color printing
• Up to 210 cards per hour front side YMCK ribbon with front side lamination
• Up to 185 cards per hour front side YMCK-K ribbon, back side K with front side lamination
• Up to 195 cards per hour (one side print and lamination with tactile) YMCK
• Up to 160 cards per hour (two sided printer and lamination with tactile) YMCK K

Card Capacity

• Input hopper – up to 125 cards
• Output hopper – up to 25 cards (up to 100 optional)
• Reject hopper – up to 10 cards

Card Sizes

• Card input size:
• Thickness – 0.010 inches to 0.040 inches
  • (0.25mm – 1.016mm)
• Dimension – ID-1, CR-79, CR-80

Operating Environment

• Temperature: 60°F to 95°F (15°C to 35°C)
• Humidity: 20-80 % RH – non condensing

Physical Dimensions

• L 23.8 in x W 10.6 in x H 20.4 in / 60.4 cm x 27 cm x 51.9 cm

Weight

• 30 lbs (13.62 kg); with options will vary

Connectivity

• USB & Ethernet

Warranties

• 36 Months Printer

Web Browser Support for Instant ID as a Service

• Chrome – Preferred
• Edge/Internet Explorer
• Safari

Operating System Support for Printer Driver

• Windows 11
• Windows 10 (32- and 64-bit)
• Windows Server 2019
• Windows Server 2022
